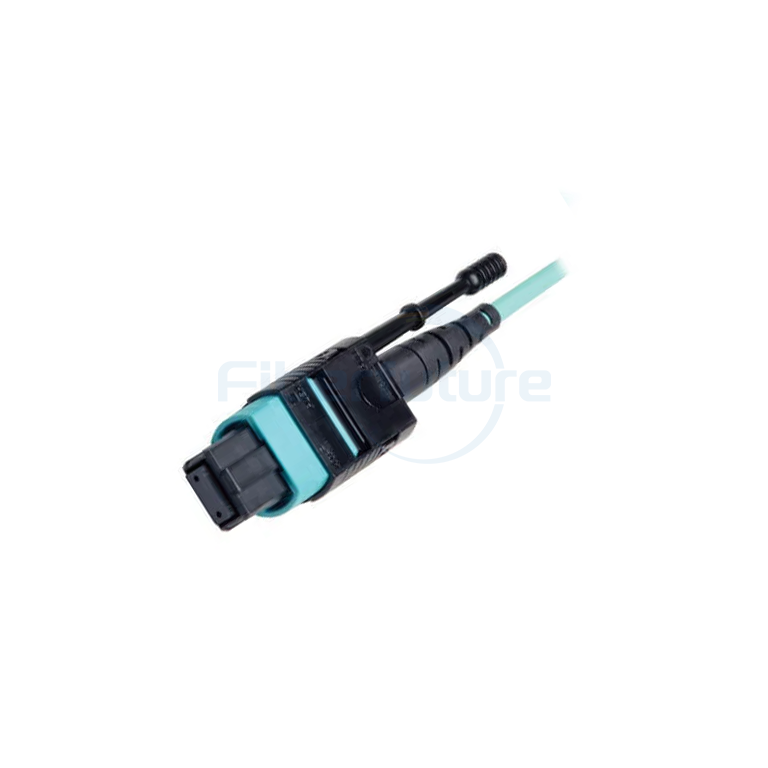

12F 24F 48F 72F 96F 144F High Density Fiber Cable MPO MTP

FIBERFUTURE 12F, 24F, 48F, 72F, 96F, and 144F high density fiber cables, equipped with MPO/MTP connectors, offer advanced multi-fiber solutions for high-speed data transmission. Designed for dense network environments, these cables provide exceptional performance, reliability, and space efficiency, making them ideal for data centers and telecommunication applications requiring large bandwidth capacity.

Send Email

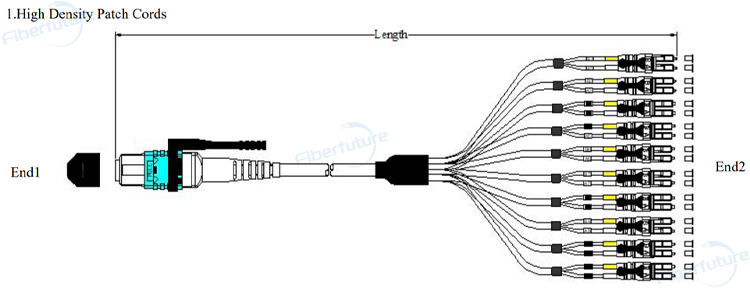

Dimensional Diagram

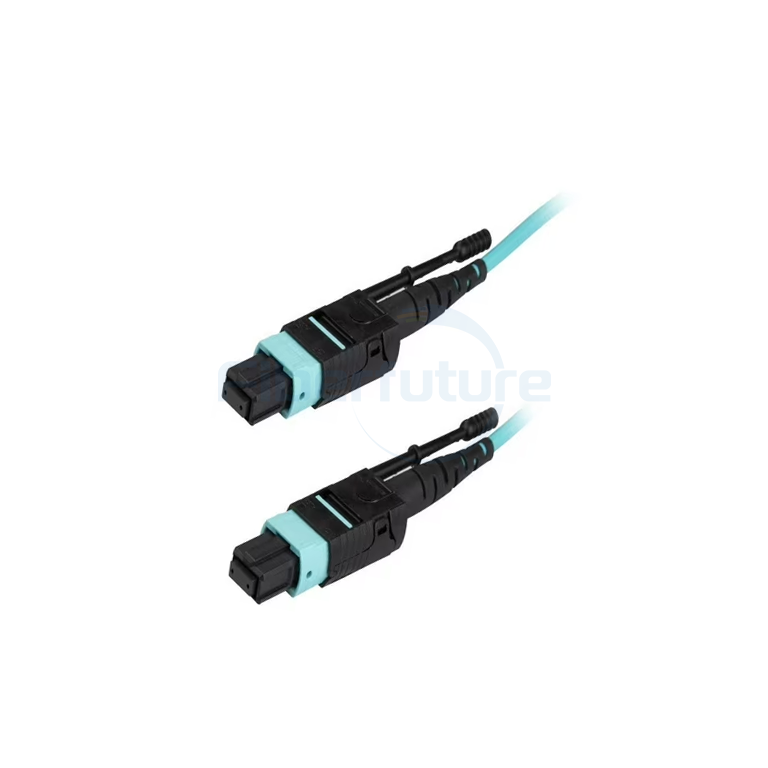

12F 24F 48F 72F 96F 144F High Density Fiber Cable MPO MTP

Applications

Deployed in data communication networks for enhanced connectivity.
Utilized in Optical System Access networks for improved access solutions.
Integrated into Storage Area Networks for Fiber Channel applications.
Essential for high-density architectures in compact spaces.

Features

Factory-preterminated and fully tested to guarantee superior transmission performance.
Facilitates swift setup and network deployment, significantly cutting down installation duration.
Compatible with high-speed 40G and 100G network applications for seamless data flow.
Offers a choice of cable jacket materials including LSZH, OFNR, and OFNP for diverse installation requirements.
Accommodates various fiber densities up to 144 fibers, with customization options to meet specific project needs.

MPO&MTP Optical Characteristics

Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB	IEC61300-3-34
Return loss	≥50dB (PC) ≥60dB (APC)	≥55dB (PC) ≥65dB (APC)	≥30dB (PC)	≥30dB (PC)	IEC61300-3-6

LC/SC/FC/ST Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB; Maximum≤0.30	Typical value≤0.15dB; Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)

Cable Parameters

Fiber Count	OD (mm)	Nominal Weight (kg/km)	Max.Tensile Strength (N)		Max.Crush Resistance (N/100mm)		Min.Bending Radius (mm)
Fiber Count	OD (mm)	Nominal Weight (kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
8	3.0±0.15	6.8	180	90	500	150	20D	10D
12	3.0±0.15	7	180	90	500	150	20D	10D
