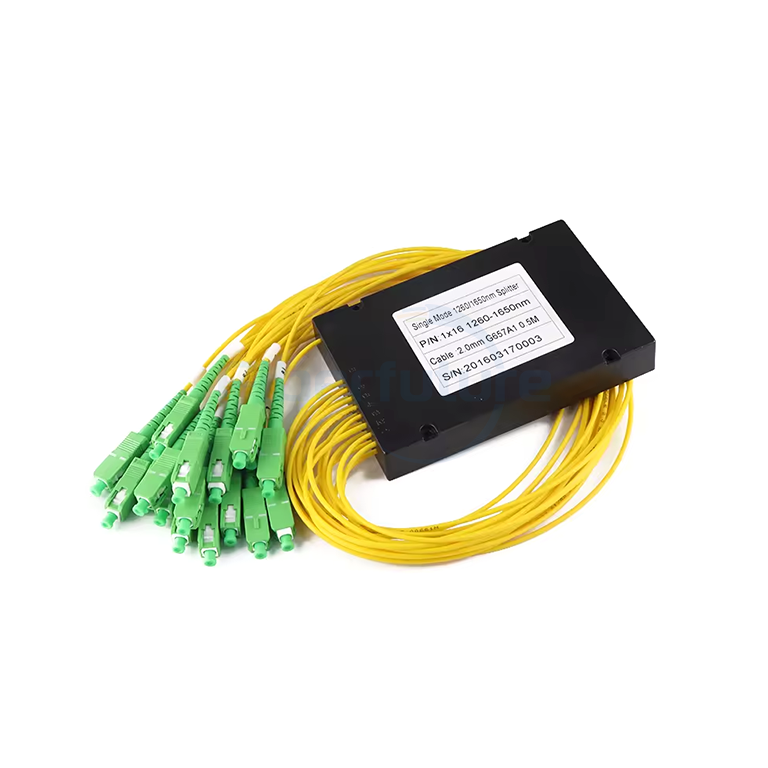

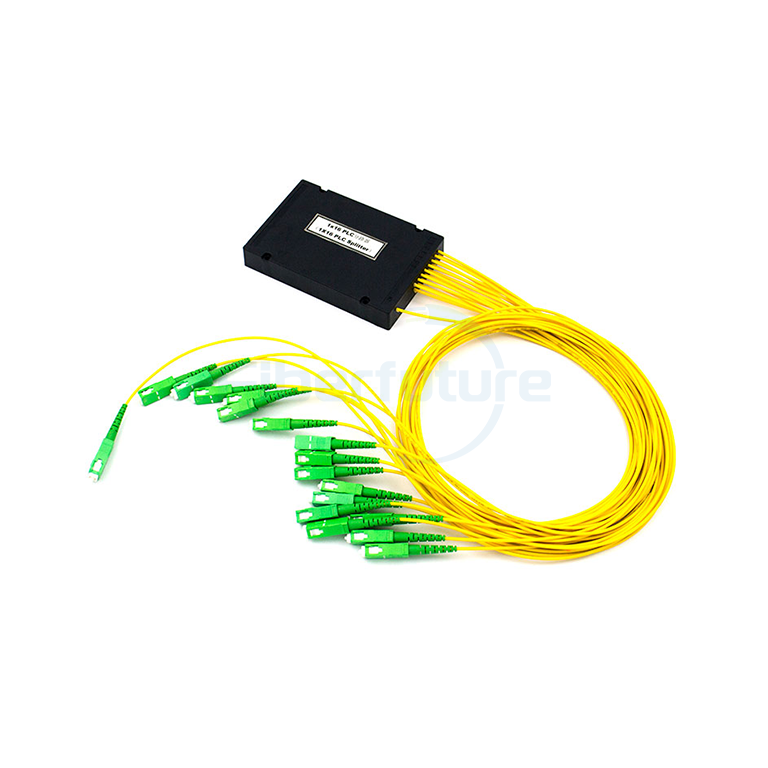

1x16 ABS FTTH PLC Splitter with SC APC Connector

FIBERFUTURE 1x16 ABS FTTH PLC Splitter with SC APC Connector is a compact, cost-effective solution for fiber optic signal distribution in FTTH networks. It features SC APC connectors for low reflection and high performance, housed in a durable ABS enclosure. Ideal for splitting signals in local area and building cabling networks.

Send Email

Applications

Fiber to the Point (FTTX) deployments.
Fiber to the Home (FTTH) installations.
Passive Optical Networks (PON, GEPON).
Local Area Networks (LAN) and Cable Television (CATV) systems.
Telecommunication networks.

Features

Low insertion loss.
Low polarization-dependent loss.
Good channel-to-channel uniformity.
Wavelength-insensitive loss, compatible with different wavelengths.
High reliability and stability.
Uniform signal distribution to users.
Compact structure and small size, suitable for direct installation in existing junction boxes.

Specifications

Model	Output Tube Diameter	Inlet/Outlet Fiber Length	Connector Type	Pipe Sizes
1*2 ABS Box Splitter	0.9mm/2.0mm/3.0mm	1m	SC/LC/ST/FC	100mm80mm10mm
1*4 ABS Box Splitter	0.9mm/2.0mm/3.0mm	1m	SC/LC/ST/FC	100mm80mm10mm
1*8 ABS Box Splitter	0.9mm/2.0mm/3.0mm	1m	SC/LC/ST/FC	100mm80mm10mm
2*16 ABS Box Splitter	0.9mm/2.0mm/3.0mm	1m	SC/LC/ST/FC	120mm80mm18mm
2*32 ABS Box Splitter	0.9mm/2.0mm/3.0mm	1m	SC/LC/ST/FC	120mm80mm18mm
2*64 ABS Box Splitter	0.9mm/2.0mm/3.0mm	1m	SC/LC/ST/FC	141mm115mm18mm

Mechanical and Environmental Characteristics

Projects	Parameter
Operating Temperature	-25°C ~ +40°C
Storage Temperature	-25°C ~ +55°C
Relative Humidity	≤85% (+30°C)
Air Pressure	70 KPa ~ 106 KPa

1xN PLC Splitter Performance

Type		1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength (nm)	1260-1650
Insertion Loss (dB)	Max	4.1	7.5	10.7	13.9	17.2	20.6
Loss uniformity (dB)	Max	0.5	0.6	0.8	1.0	1.5	2.0
Return Loss (dB)		≥50
Polarization Dependent Loss (dB)	Max	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)		≥55
Fiber Type		SMF-28E or Customer Designation
Wavelength Dependent Loss (dB)	Max	0.6	0.6	0.6	0.8	0.8	0.8
Temperature Correlation Loss -40～85℃ (dB)	Typical Value	0.2	0.2	0.3	0.4	0.4	0.4
Temperature Correlation Loss -40～85℃ (dB)	Max	0.5	0.5	0.5	0.5	0.5	0.5
Working Temperature (℃)		-40～85℃
Storage Temperature (℃)		-40～85℃

2xN PLC Splitter Performance

Type		2x2	2x4	2x8	2x16	2x32	2x64
Operating Wavelength (nm)	1260-1650
Insertion Loss (dB)	Max	4.3	7.8	11.1	14.4	17.7	20.7
Loss uniformity (dB)	Max	0.5	0.6	0.8	1.0	1.5	2.0
Return Loss (dB)		≥50
Polarization Dependent Loss (dB)	Max	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)		≥55
Fiber Type		SMF-28E or Customer Designation
Wavelength Dependent Loss (dB)	Max	0.6	0.6	0.6	0.8	0.8	0.8
Temperature Correlation Loss -40～85℃ (dB)	Typical Value	0.2	0.2	0.3	0.4	0.4	0.4
Temperature Correlation Loss -40～85℃ (dB)	Max	0.5	0.5	0.5	0.5	0.5	0.5
Working Temperature (℃)		-40～85℃
Storage Temperature (℃)		-40～85℃
