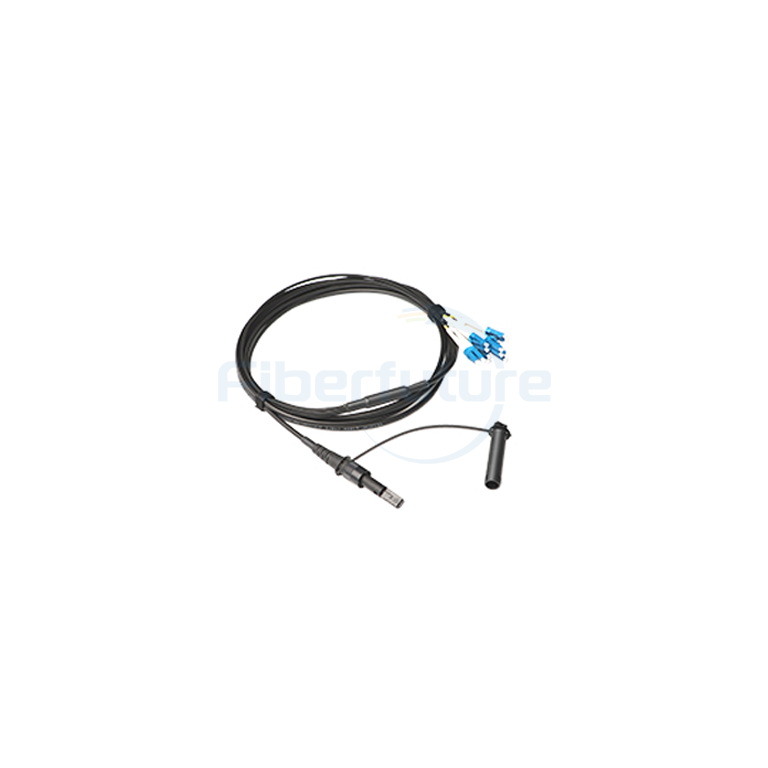

FIBERFUTURE TW (MPO/APC) cable assemblies offer a cost-effective and efficient method for deploying optical fiber in outside plant distribution networks, significantly faster than traditional field installations. These assemblies feature a simple, one-step connection system combining push-pull insertion and a nut-style mechanical latch for quick installation. TW (MPO/APC) cable assemblies are suitable for armored or non-armored cables and are designed for use in various applications, including connections to Remote Radio Units (RRU/RRH), FTTA, FTTH equipment, and other outdoor systems. The unique housing design allows for factory-terminated and tested cable assemblies or retrofitting to existing outdoor cable assemblies.
Connection to Remote Radio Units (RRU/RRH)
FTTA, FTTH equipment
Other outdoor systems
| Item | Parameter |
| Insertion Loss | Elite ≤0.50 dB, Standard ≤1.0 dB |
| Return Loss | Min. 60 dB |
| Durability | 1000 Cycles |
| Operating Temperature | -40 °C ~ +85 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Installation Temperature | -40 °C ~ +85 °C |
| Waterproofing Grade | IP68 (1M, 1 hour) |
| Cable Diameter Range | ∅3.0mm - ∅7.0mm; Butterfly; 4x7mm Flat |
| Housing Material | PC |
| Boot Material | TPV |
| Parameter | Specification | |
| Pull | FRP (Pull≥50N) | IEC 61300-2-4 |
| Vibration | IEC 61300-2-1 | |
| Impact | IEC 61300-2-12 | |
| Temperature | IEC 61300-2-22 | |
| Humidity | IEC 61300-2-22 | |
