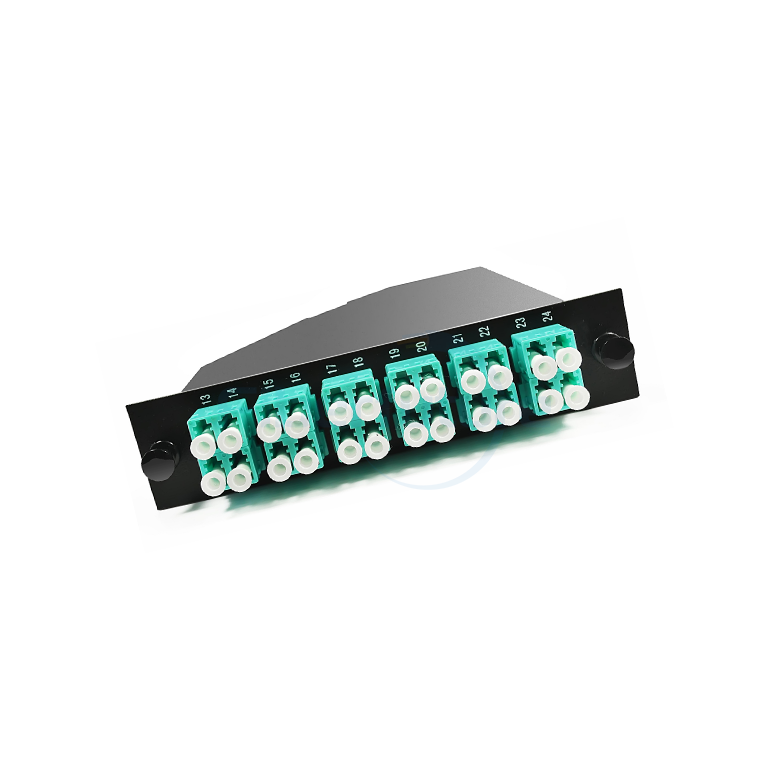

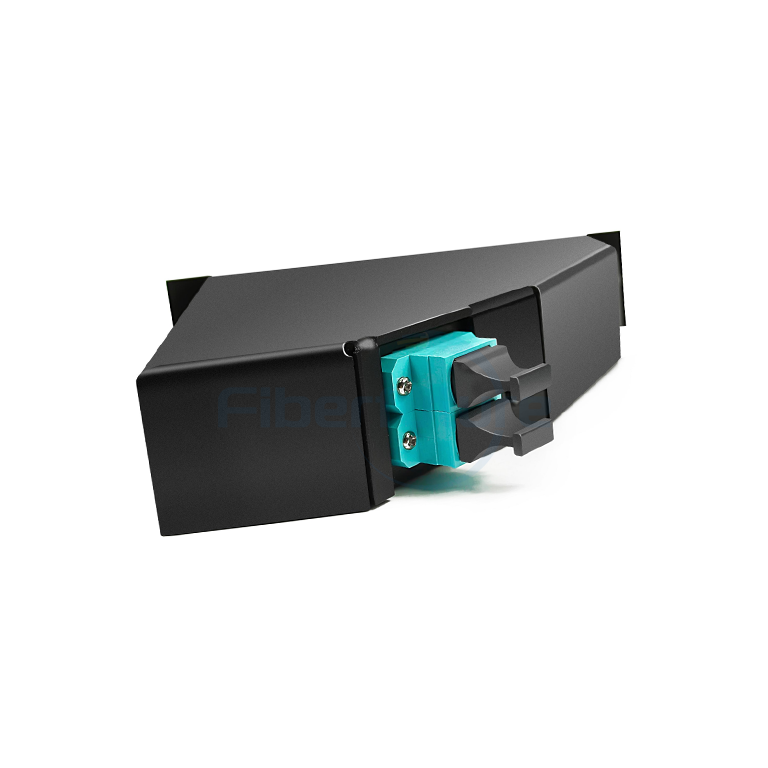

FIBERFUTURE LAN/WAN compact MTP/MPO cassette houses 24 fibers, offering high-density fiber management for data centers. With a compact design, it supports easy identification and operation, making it suitable for 40G and 100G network applications with excellent reliability and environmental stability.
Telecommunications loops
FTTH
LAN/WAN networks
CATV systems
Other fiber optic system applications
Standard size, lightweight.
Compact design saves space.
Front markings for easy identification.
User-friendly for management.
40G and 100G networks.
High reliability.
Excellent environmental stability.
| Projects | Parameter |
| Operating temperature | -25℃~+70℃ |
| Storage temperature | -25℃~+70℃ |
| Relative humidity | ≤85％(+30℃) |
| Color | Black |
| Max. Capacity | 24 port (LC) |
| Dimension (LxWxH) | 126mmx130mmx29mm |
| Performance Level | Standard | Elite | |||
| Connector | Cable | IL (max) | RL (max) | IL (max) | RL(max) |
| MPO/MTP | OM4 | ≦0.70dB | ≧20dB | ≦0.35dB | ≧20dB |
| LC | ≦0.20dB | ≧30dB | ≦0.10dB | ≧30dB | |
