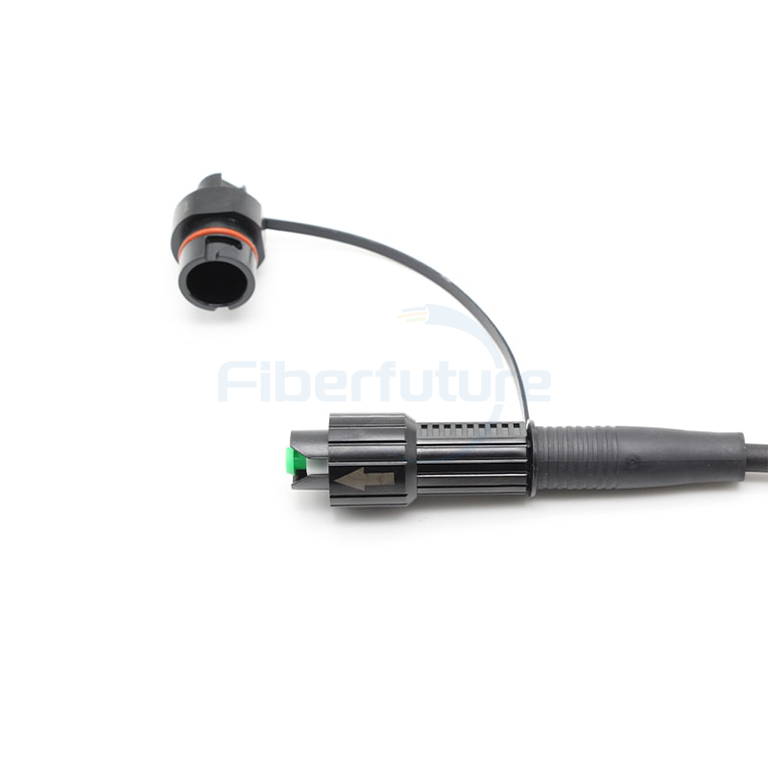

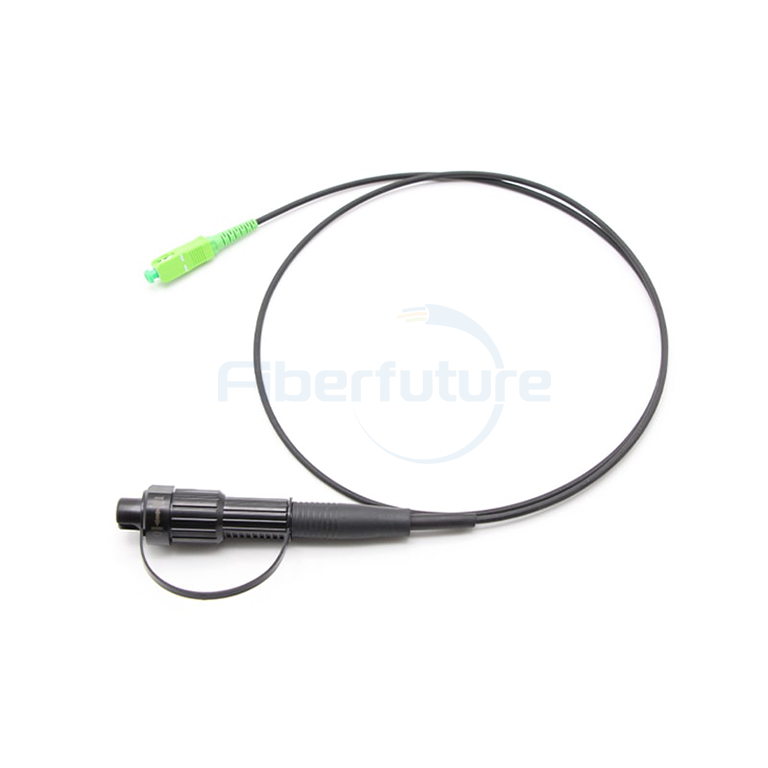

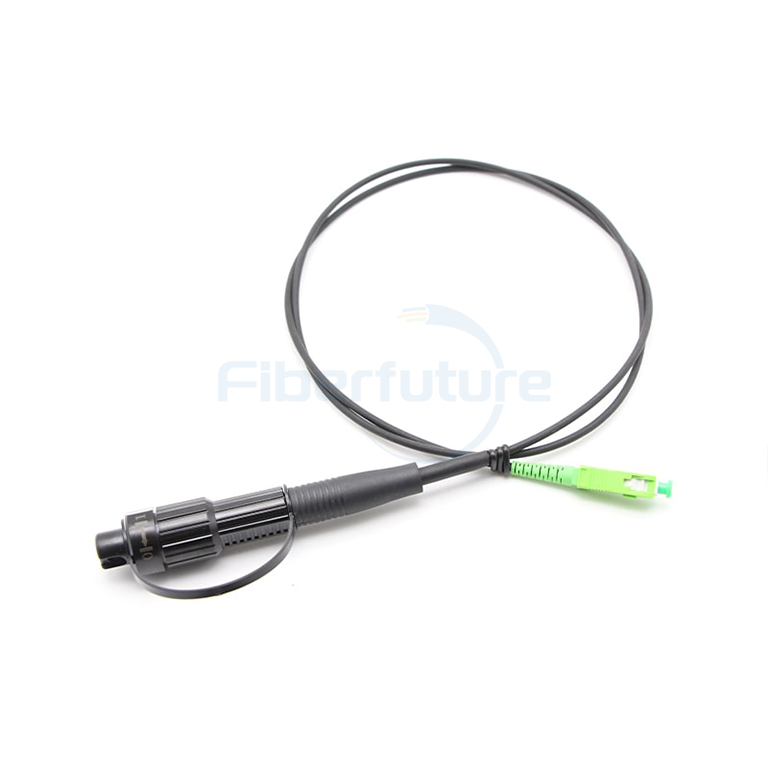

FIBERFUTURE’s mini IP SC APC-SC APC SM 3.0mm waterproof patch cord uses a 3.0mm round drop cable, offering strong tensile resistance. The Huawei connector features an SC/APC type in a sealed, threaded polymer housing, enabling simple connections. It plugs directly into optical termination boxes without opening, providing robust, sealed, and waterproof links ideal for FTTH applications.
| Connector | Mini IP SC-Standard SC | Polish | APC-APC |
| Fiber Mode | 9/125μm, G657A2 | Jacket Color | Black |
| Cable OD | 3.0±0.2mm | Wavelength | SM: 1310/1550nm |
| Cable Structure | Simplex | Jacket Material | LSZH/TPU |
| Insertion Loss | ≤0.3dB (Super Low Loss) | Return Loss | SM APC ≥ 60dB (min) |
| Operation Temperature | -10 ~ +70°C | Install & Storage Temperature | -40 ~ +70°C |
| Items | Unite | Specifications | Reference |
| Span Length | M | 50(LSZH)/80(TPU) | |
| Tension (Long Term) | N | 150(LSZH)/200(TPU) | IEC 61300-2-4 |
| Tension (Short Term) | N | 300(LSZH)/800(TPU) | IEC 61300-2-4 |
| Crush (Long Term) | N/10cm | 100 | IEC 61300-2-5 |
| Crush (Short Term) | N/10cm | 300 | IEC 61300-2-5 |
| Min. Bend Radius (Dynamic) | mm | 20D | |
| Min. Bend Radius (Static) | mm | 10D | |
| Operating Temperature | ℃ | -20～+60 | IEC 61300-2-22 |
| Storage Temperature | ℃ | -20～+60 | IEC 61300-2-22 |

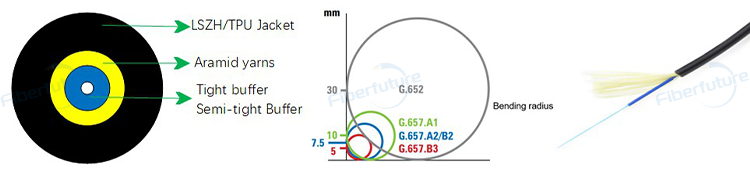

| Items | Description | |
| Number of Fiber | 1F | |
| Fiber Type | G657A2 Natural/Blue | |
| Diameter of Mode Field | 1310nm: 8.8+/-0.4um, 1550:9.8+/-0.5um | |
| Cladding Diameter | 125+/-0.7um | |
| Buffer | Material | LSZH Blue |
| Diameter | 0.9±0.05mm | |
| Strength Member | Material | Aramid Yarn |
| Outer Sheath | Material | TPU/LSZH with UV Protection |
| CPR LEVEL | CCA, DCA, ECA | |
| Color | Black | |
| Diameter | 3.0+/-0.2mm | |
| Type | Mini IP SC/APC |
| Insertion Loss | Max. ≤ 0.3 dB |
| Return Loss | ≥ 60 dB |
| Tensile Strength between Optical Cable and Connector | Load: 300N Duration: 5s |
| Waterproof | IP67 |
| Fall | Drop Height: 1.5m
Number of dDrops: 5 for Each Plug Test Temperature: -15℃ and 45℃ |
| Bending | Load: 45 N
Duration: 8 Cycles, 10s/Cycle |
| Torsion | Load: 15N
Duration: 10 Cycles ± 180° |
| Static Side Load | Load: 50N for 1h |
| Waterproof | Depth: under 3m of Water. Duration: 7 Days |
| Change of Temperature | Temperature: -25ºC to 70 ºC
Duration at Extreme Temps: 1h Temperature Change Speed: 1ºC/min Cycles: 12 |
| Overall Length (L) (m) | Length of Tolerance (cm) |
| 10＜L＜40 | +15/-0 |
| 40＜L | +0.5%L/-0 |
