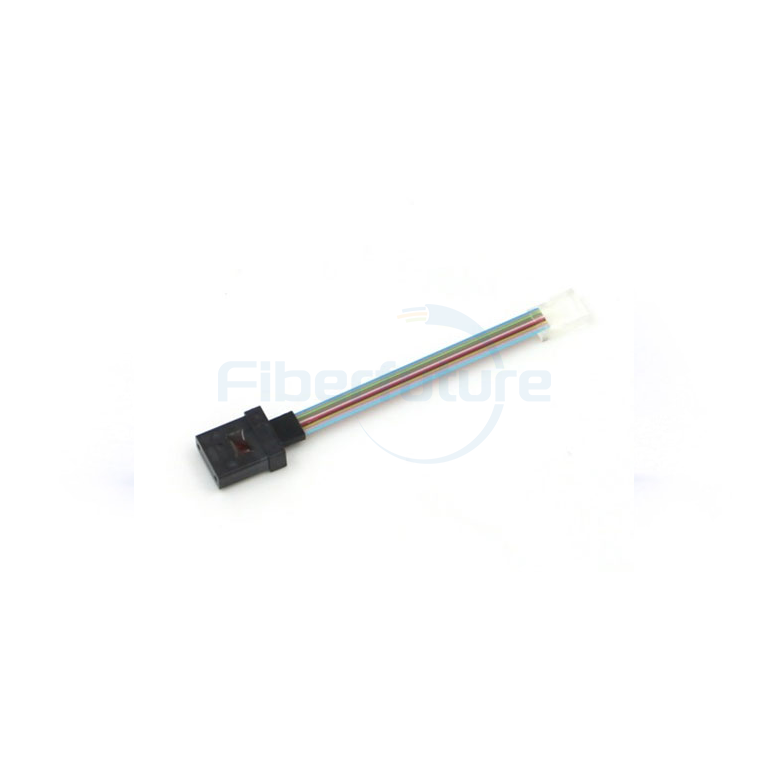

MT Fiber Array Assembly 2F/4F/8F/12F/16F/24F

FIBERFUTURE MT fiber array assembly is a high-density fiber connection solution that uses mechanical transfer (MT) interface technology to integrate multiple optical fibers (such as 12 or 24 fibers) into a single module to achieve efficient and precise alignment and coupling. It is widely used in high-bandwidth applications in data centers and communication networks.

Send Email

Features

Compliant with GR-1435 and GR-1221 industry standards.
Supports multi-channel transmission in both serial and parallel modes.
Offers high accuracy in fiber alignment and signal transmission.
Data rate support includes: 12 x 1.25~3.5G, 2X40G(4x10G), 2X100G(4x25G), 10X10G, 12x10G, 4x32G, 8X10G, 8X25G, 8X50G, 8X100G
Features active coupling with a light source at angles between 0 to 45 degrees.
Enables passive coupling using guide pins at 90 degrees.
Insertion Loss (IL) specifications: MT IL ≤0.60 dB (typical 0.20 dB).
Return Loss (RL) specifications: MT RL ≥20 dB.
Can operate in environmental temperatures ranging from -40°C to +85°C.

Specifications

Connector A	MT Ferrule with guide pin
Connector B	FA, customized size/angle available
Fiber shape	Ribbon/single fibers
Fiber count	2F/4F/8F/12F/16F/24F
Fiber type	OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5
Length	20~100mm, customized length available
Length tolerance	+500um/-0um
