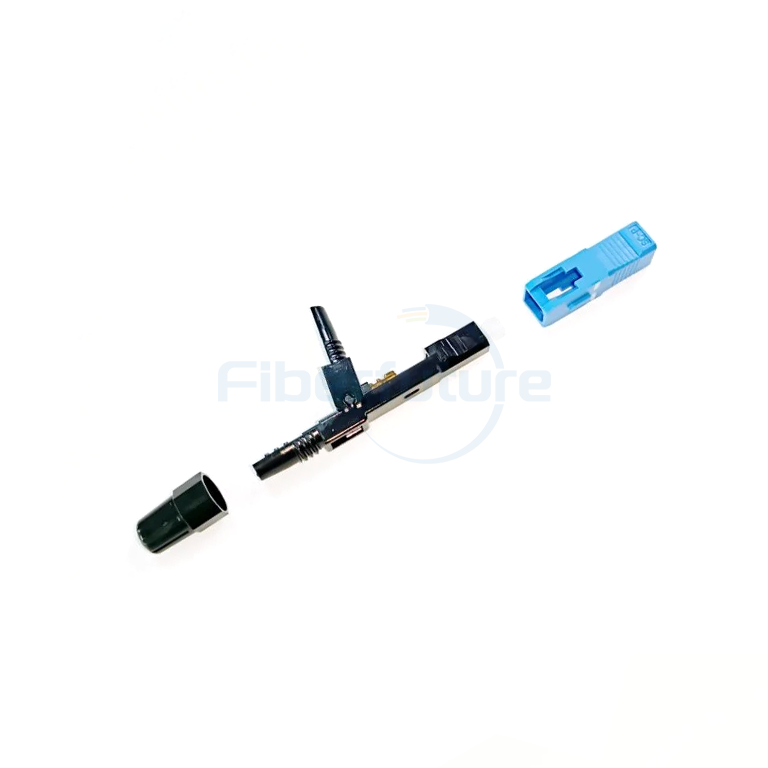

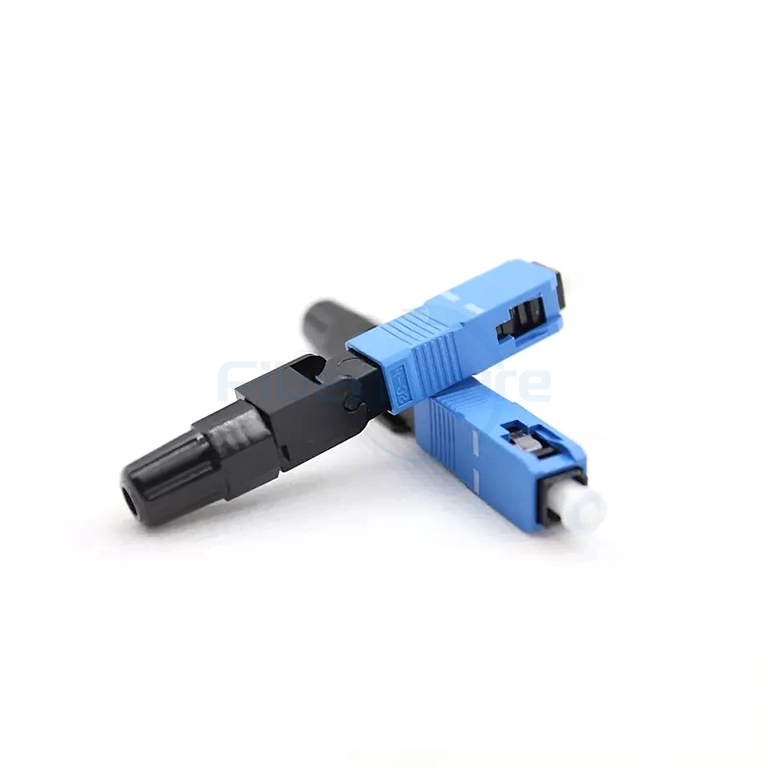

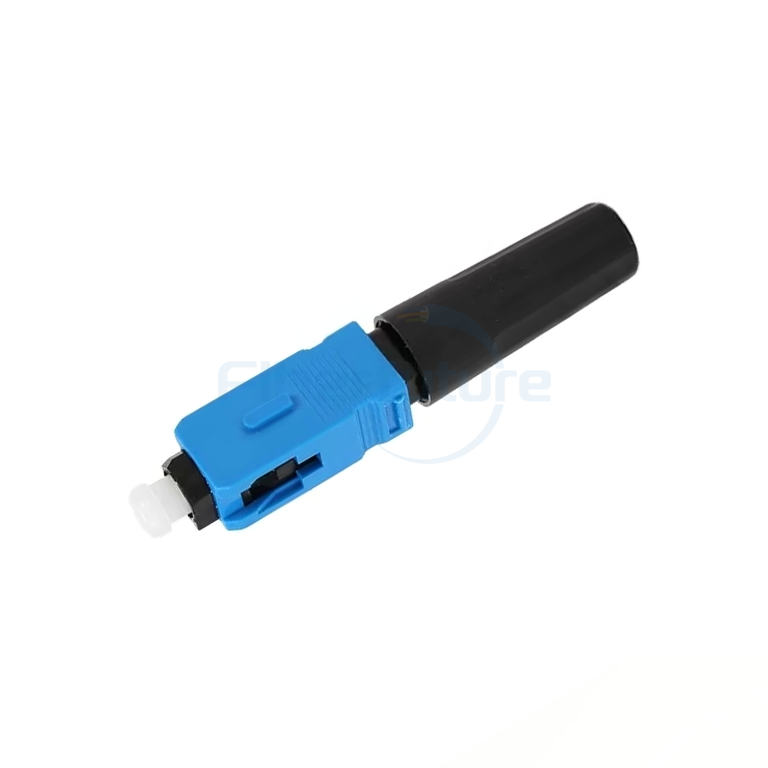

Quick SC/UPC Fiber Connector to Open the FTTH Fiber Terminal End

Quick SC/UPC Fiber Connector to Open the FTTH Fiber Terminal End

FIBERFUTURE quick SC/UPC fiber connector swiftly opens the FTTH fiber terminal end, providing a secure, easy-to-install connection with minimal insertion loss, ideal for rapid deployment in home networking applications.

Send Email

Applications

Used to open the FTTH fiber terminal end.
Ideal for installation in boxes and cabinets, such as wiring into distribution boxes.
Enables quick repair or replacement of damaged fibers behind panels.
Suitable for maintenance tasks in Local Area Networks (LANs) and Wide Area Networks (WANs).
Supports data and video transmission in network infrastructure.
Facilitates the construction and maintenance of fiber end-user access points.
Essential for the optical fiber access of mobile base stations.

Features

Ensures high-quality and efficient research and development with a high ratio of successful installations.
Pressure welding components feature a unique structural design, eliminating the need for injection, polishing, or additional materials.
Incorporates an embedded optical fiber type structure for seamless integration.
Installed with high quality, achieving a high success rate and fast deployment.
Reusable and designed for simplicity at the installation site.
Lightweight and portable for easy transportation.

Specifications

Performance Parameter	Specification
Insertion Loss	≤0.40 dB
Return Loss	≥45 dB
Mechanical Durability	500 matings
Storage Temperature	-40°C to +85°C
Operation Temperature	-40°C to +85°C
Tensile Strength	>40 N
Number of Repeated Use	5 times or more
SC Connector Standard	According to IEC 61754-4
Suitable Cable Outer Diameter	2.0mm, and 3.0mm, 2*3.0mm
