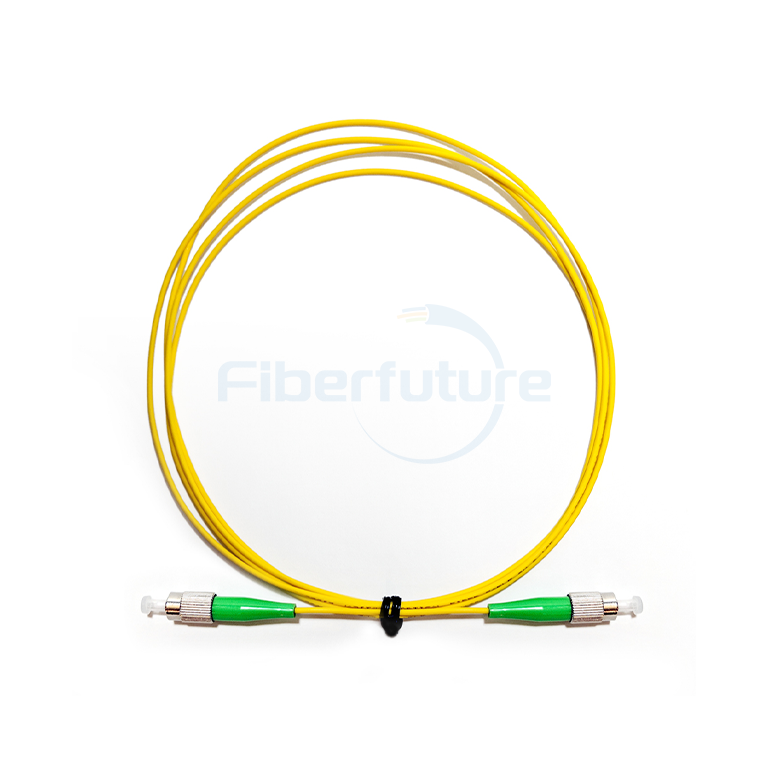

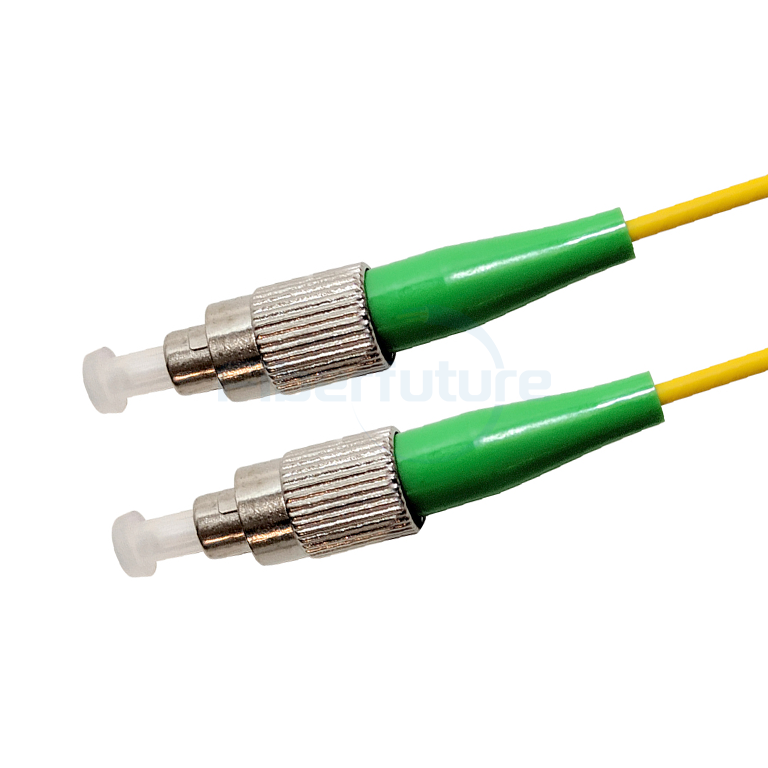

Riser (OFNR) 2.0mm Tight-Buffered Fiber Optic Patch Cable FC APC to FC APC

FIBERFUTURE FC APC to FC APC single-mode OS2 fiber optic patch cord uses a tight 2.0mm buffer layer and is equipped with angle polished connectors on both ends. It is suitable for high-precision single-mode fiber optic signal transmission in data centers and local area networks and meets OFNR-level fire protection standards.

Send Email

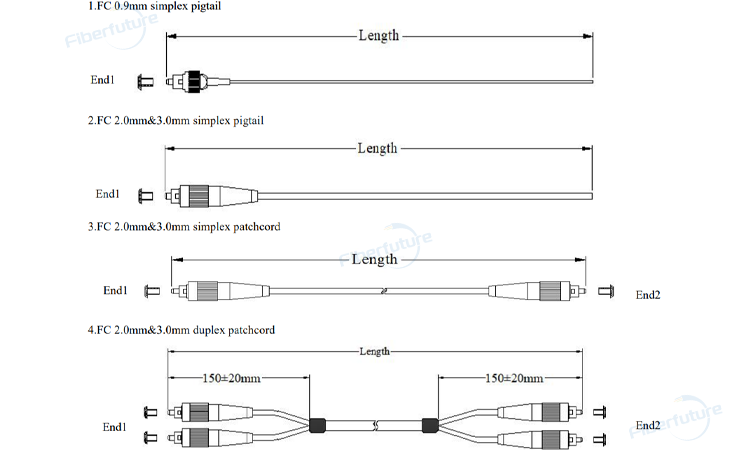

Dimensional Diagram

Riser (OFNR) 2.0mm Tight-Buffered Fiber Optic Patch Cable FC APC to FC APC

Applications

Engineering and construction of optical fiber communication systems.
Networks utilizing fiber optic cables for data transmission.
Design and implementation of Fiber CATV (Cable Television) systems.
Testing and experimentation with other optical technologies and devices.

Features

Offers a wide array of styles with a full complement of interface options.
Ensures minimized insertion and additional loss for optimal signal strength.
Achieves significant attenuation for reduced signal bleed.
Delivers high back reflection loss, compact size, and lightweight design.
Surpasses IEC and Telcordia standards for end-face precision and quality.
Features LSZH, OFNP, and OFNR rated cable sheathing for safety and performance.
Complies with IEC 61754-13 for superior mechanical reliability.
Adheres to RoHS and REACH directives for eco-friendly materials use.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
