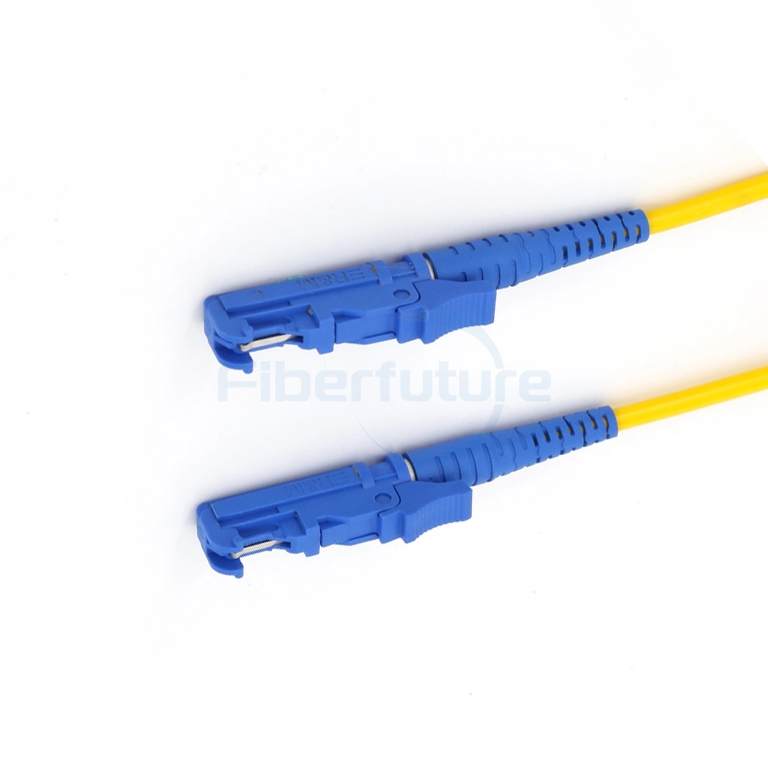

Simplex E2000 Patch Cord 0.9mm 2.0mm 3.0mm

FIBERFUTURE E2000 single-core fiber patch cords are available in different diameters: 0.9mm, 2.0mm, and 3.0mm. They use a high-density connector design to optimize network performance and are suitable for high-speed fiber optic communication environments such as data centers and local area networks.

Send Email

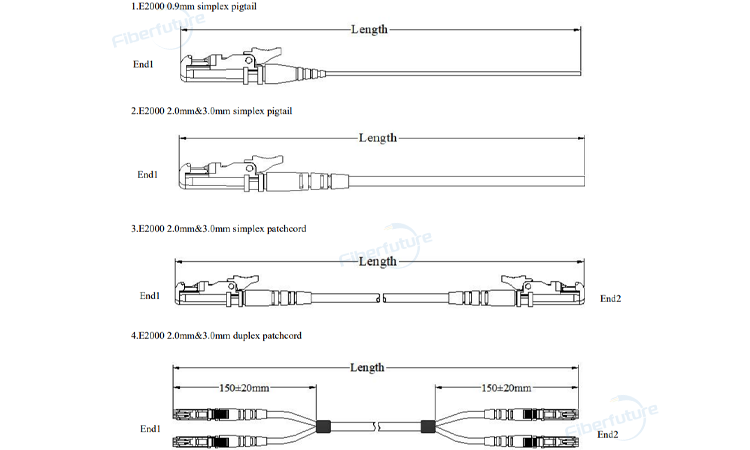

Dimensional Diagram

Simplex E2000 Patch Cord 0.9mm 2.0mm 3.0mm

Applications

Engineering and deployment of optical fiber communication infrastructures.
Development and maintenance of fiber optic networks for data transmission.
Installation and service of Fiber CATV systems for multimedia distribution.
Conducting trials and evaluations in various optical technology applications.

Features

Offers a varied selection of designs with comprehensive connector options.
Ensures minimal signal loss with low insertion and additional loss figures.
Provides significant attenuation for reduced signal interference.
Features high back reflection loss, compact size, and a lightweight structure.
Surpasses IEC and Telcordia standards for end-face geometry and quality.
Incorporates LSZH, OFNP, and OFNR rated cable jackets for safety and performance.
Meets IEC 61754-15 requirements for robust mechanical reliability.
Adheres strictly to RoHS and REACH regulations for material compliance.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
