Stranded Loose Tube Light-armored Cable GYTS

PSP Armored Stranded Loose Tube Optical Fiber Cable GYTS

Stranded Loose Tube Light-armored Cable GYTS

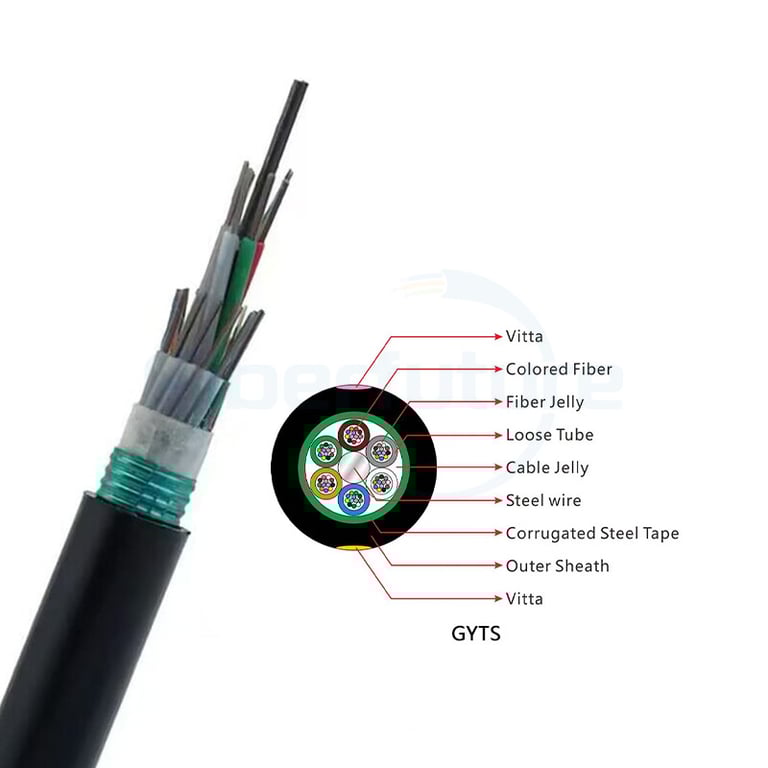

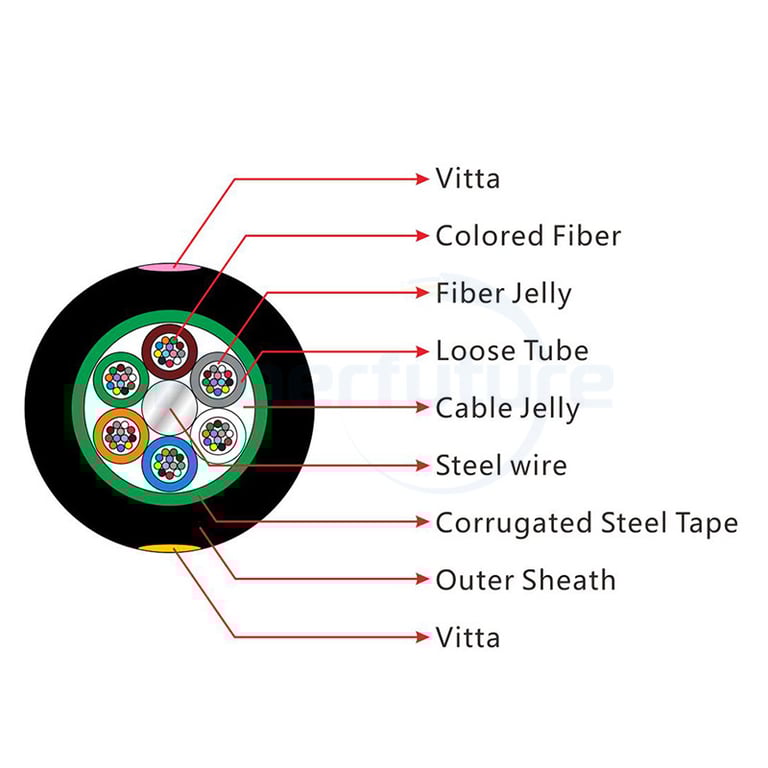

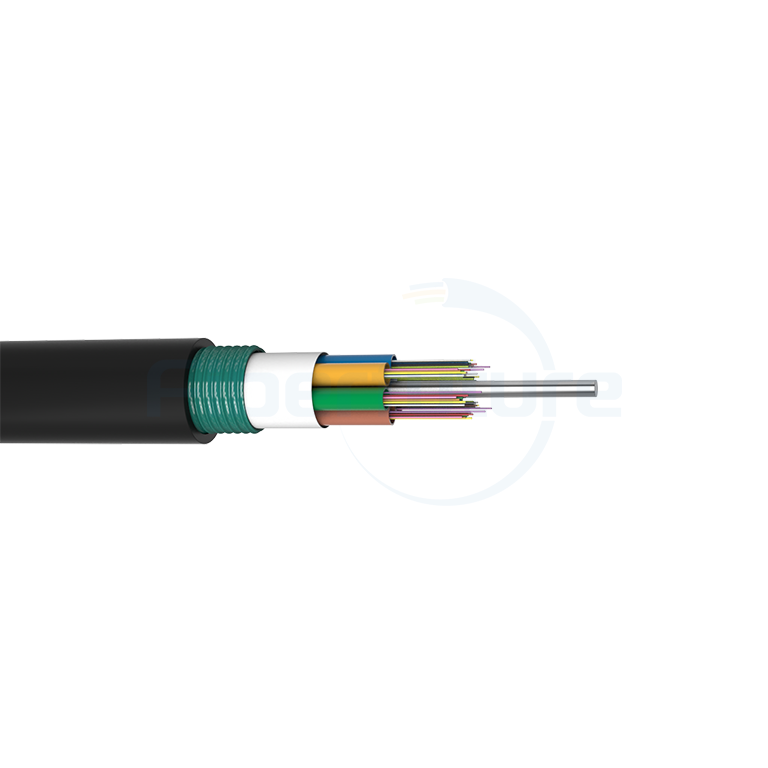

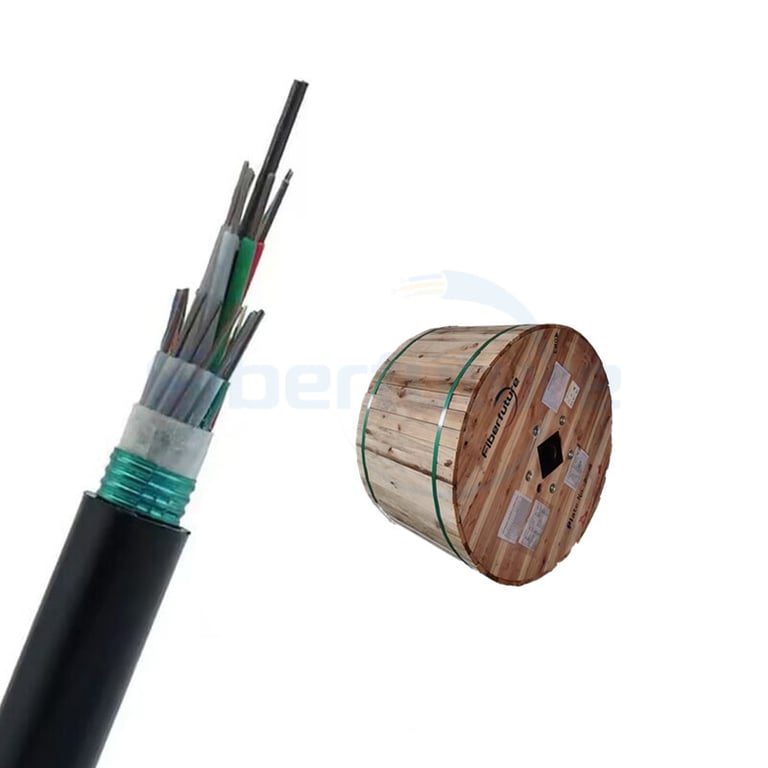

FIBERFUTURE® GYTS cable construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic and filled with a water-resistant filling compound; A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member; Tubes are stranded around the strength member into a compact and circular cable core; The PSP (Steel Tape) is longitudinally applied over the cable core which is filled with the filling compound to protect it from water ingress; The cable is completed with a polyethylene (PE) sheath.

APPLICATIONS

Fiber Count
Fiber Type
Outer Sheath
Armored

Send Email

Main Features

Good mechanical and temperature performance
High hydrolysis resistance and high strength loose tube
Good crush resistance and flexibility
High tensile strength ensured by steel wire
Good moisture-proof ensured by PSP
Gopher protected cable

Standards

GYTS cable complies with Standard IEC 60793, IEC60794, TIA/EIA, ITU-T

Color of Fiber and Loose tube

01 - Blue	02 - Orange	03 - Green
04 - Brown	05 - Slate	06 - White
07 - Red	08 - Black	09 - Yellow
10 - Violet	11 - Pink	12 - Aqua

Optical Charactristic

G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Specification

Parameters		Specification
Fiber Count		2~30	32~36	38~60	62~72	74~96	98~120	122~144
Cable Diameter (mm) (±0.3)		9.4	9.6	10.1	10.6	11.8	13.2	14.6
Cable Weight (kg/km)		101	112	124	133	158	187	211
Tensile Strength (N)	Short Term	1500
	Long Term	600
Crush Resistance (N)	Short Term	1000
	Long Term	300
Bending Radius (mm)	Dynamic	20D
	Static	10D
Attenuation (After Cable) (dB/km)	MM Fiber @850nm	≤ 3.0 (50/125μm) ≤ 3.3 (62.5/125μm)
	MM Fiber @1300nm	≤ 1.0
	SM Fiber @1310nm	≤ 0.36
	SM Fiber @1550nm	≤ 0.22
Operating Temperature (°C)		-40 ~ +70
Storage Temperature (°C)		-40 ~ +70

Main Mechanical & Environmental Performance Test

Item	Test Method	Acceptance Condition
Tensile Strength IEC 794-1-2-E1	- Load: Short term tension - Length of cable: about 50m	- Fiber strain £ 0.33%
		- Loss change £ 0.1 dB @1550 nm
		- No fiber break and no sheath damage.
Crush Test IEC 60794-1-2-E3	- Load: Short term crush	- Loss change £ 0.05dB@1550nm - No fiber break and no sheath damage.
	- Load time: 1min
Impact Test IEC 60794-1-2-E4	- Points of impact: 3	- Loss change £ 0.1dB@1550nm - No fiber break and no sheath damage.
	- Times of per point: 1
	- Impact energy: 5J
Temperature Cycling Test YD/T901-2001-4.4.4.1	- Temperature step:	- Loss change £ 0.05 dB/km@1550 nm - No fiber break and no sheath damage
	+20oC→-40oC→+70oC →+20oC
	- Time per each step: 12 hrs
	- Number of cycle: 2

Sheath marking

The optical fiber drop cable shall have sequentially numbered length marking at intervals of approximately 1 meter. The starting number of ordering length for any coil shall begin whit zero meter. The accuracy of the measurement of lenth marking shall be held within the limits of ±1%.

a) Manufacturer’s name

b) Type of wire

c) Year and month of manufacture

d) Length marking each meter along the wire
